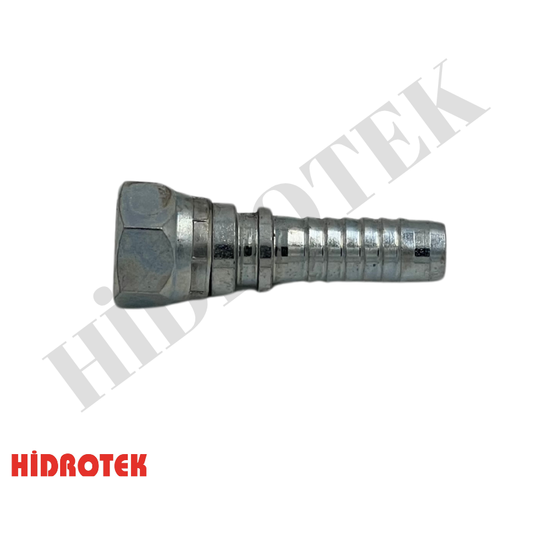

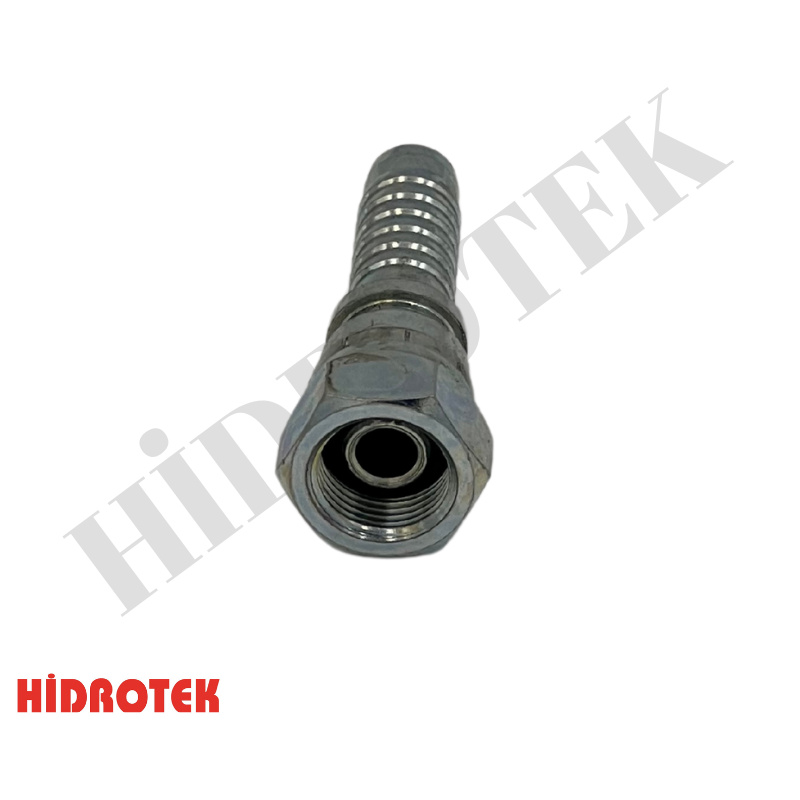

BSP SOMUNLU DÜZ HORTUM RAKORLARI |
|||||||
HORTUM ÖLÇÜSÜ |
SOMUN ÖLÇÜSÜ |
B |
C |
ØD |
AA |
||
mm |
inch |
||||||
05 |
3/16 |
R1/8-28 |
36 |
15 |
3.2 |
14 |
|
05 |
3/16 |
R1/4-19 |
38 |
17 |
3.2 |
17 |
|
06 |
1/4 |
R1/8-28 |
40.5 |
15 |
4 |
14 |
|
06 |
1/4 |
R1/4-19 |
42.5 |
17.5 |
4 |
17 |
|
06 |
1/4 |
R3/8-19 |
45 |
20 |
4 |
22 |
|
06 |
1/4 |
R1/2-14 |
48 |
23 |
4 |
27 |
|
08 |
5/16 |
R1/4-19 |
44.5 |
17.5 |
5.5 |
17 |
|
08 |
5/16 |
R3/8-19 |
47 |
20 |
5.5 |
22 |
|
08 |
5/16 |
R1/2-14 |
50 |
23 |
5.5 |
27 |
|
10 |
3/8 |
R3/8-19 |
50 |
20 |
7 |
22 |
|
10 |
3/8 |
R1/2-14 |
53 |
23 |
7 |
27 |
|
12 |
1/2 |
R3/8-19 |
53.5 |
20.5 |
9 |
22 |
|
12 |
1/2 |
R1/2-14 |
56.5 |
23.5 |
9 |
27 |
|
12 |
1/2 |
R5/8-14 |
59 |
27 |
9 |
30 |
|
12 |
1/2 |
R3/4-14 |
60.5 |
27.5 |
9 |
32 |
|
16 |
5/8 |
R1/2-14 |
64.5 |
24.5 |
12 |
27 |
|
16 |
5/8 |
R5/8-14 |
67 |
27 |
12 |
30 |
|
16 |
5/8 |
R3/4-14 |
67.5 |
27.5 |
12 |
32 |
|
16 |
5/8 |
R1"-11 |
74 |
34 |
12 |
41 |
|
19 |
3/4 |
R3/4-14 |
72 |
28 |
14 |
32 |
|
19 |
3/4 |
R1"-11 |
78 |
34 |
14 |
41 |
|
25 |
1" |
R1"-11 |
88 |
34 |
19 |
41 |
|
25 |
1" |
R1"1/4-11 |
88.5 |
34.5 |
19 |
50 |
|
32 |
1"1/4 |
R1"1/4-11 |
95.5 |
36 |
25 |
50 |
|
38 |
1"1/2 |
R1"1/2-11 |
111.5 |
39.5 |
29 |
55 |
|
50 |
2" |
R2"-11 |
103.5 |
43.5 |
41 |
70 |
|
64 |
2"1/2 |
R2"1/2-11 |
109 |
49 |
54 |
90 |
|
76 |
3" |
R3"-11 |
125 |
60 |
63 |
96 |
