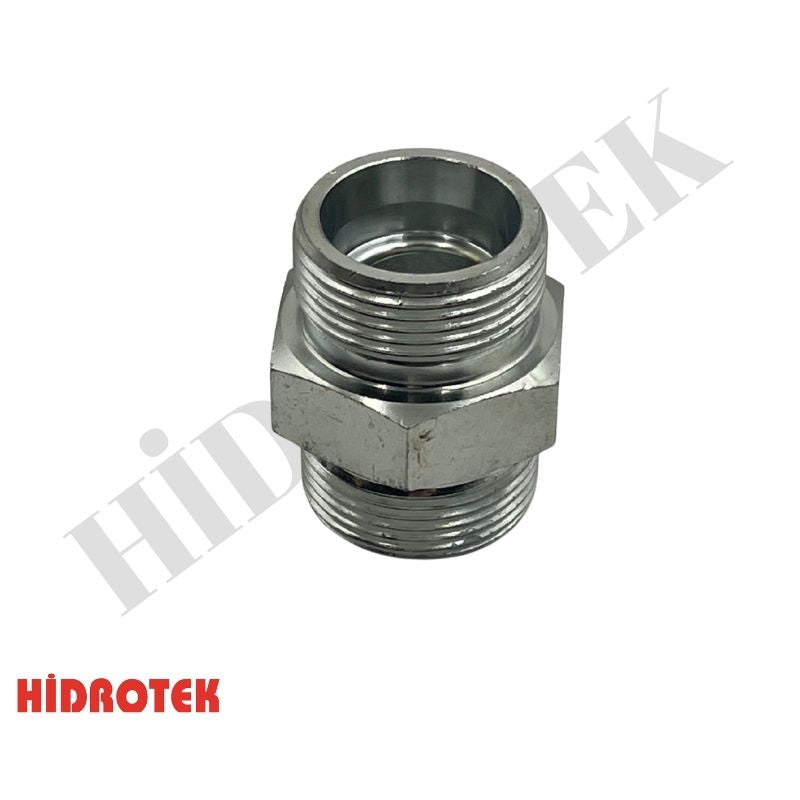

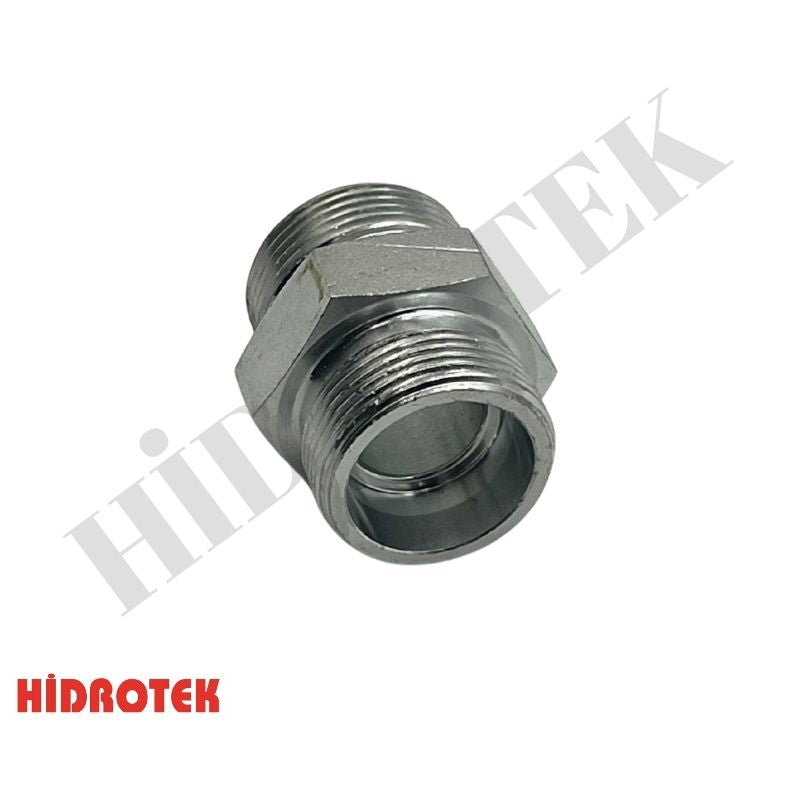

BSP ARA NİPELİ |
|||||
DİŞ ÖLÇÜSÜ |
DİŞ ÖLÇÜSÜ |
B |
C |
ØD |
AA |
R1/8-28 |
R1/8-28 |
24.5 |
9 |
4 |
14 |
R1/4-19 |
R1/4-19 |
30.5 |
11 |
6 |
19 |
R3/8-19 |
R3/8-19 |
33.5 |
12 |
9 |
22 |
R1/2-14 |
R1/2-14 |
39 |
14 |
12 |
27 |
R5/8-14 |
R5/8-14 |
43.5 |
16 |
14 |
30 |
R3/4-14 |
R3/4-14 |
44 |
16 |
16 |
32 |
R1"-11 |
R1"-11 |
50.5 |
18.5 |
20 |
41 |
R1"1/4-11 |
R1"1/4-11 |
59.5 |
22 |
28 |
50 |
R1"1/2-11 |
R1"1/2-11 |
61 |
22 |
32 |
55 |
R2"-11 |
R2"-11 |
66.5 |
24 |
45 |
70 |
R2"1/2-11 |
R2"1/2-11 |
70 |
24 |
56 |
81 |
R3"-11 |
R3"-11 |
70 |
24 |
68 |
91 |
