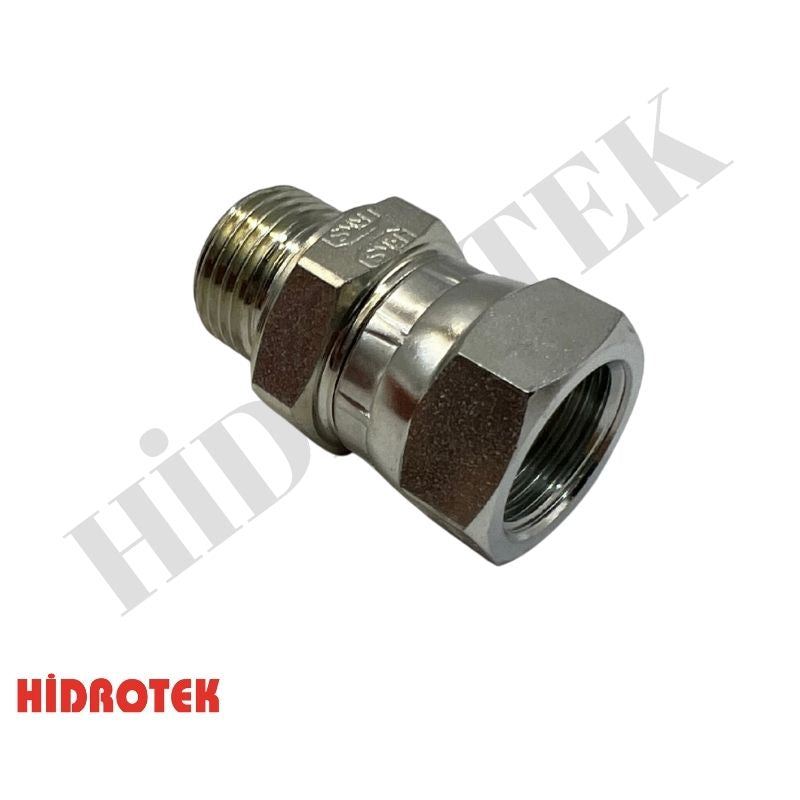

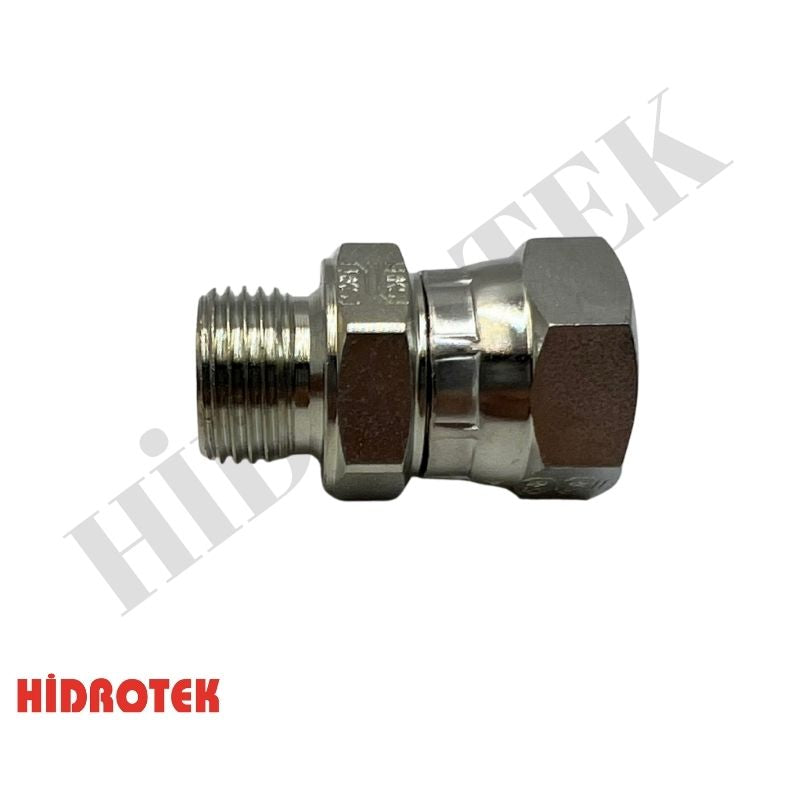

BSP TERS NİPEL |
||||||
DİŞ ÖLÇÜSÜ |
DİŞ ÖLÇÜSÜ |
B |
C |
ØD |
A1 |
A2 |
R1/8-28 |
R1/8-28 |
23.5 |
9 |
4 |
14 |
14 |
R1/4-19 |
R1/4-19 |
30 |
11 |
5.5 |
19 |
17 |
R3/8-19 |
R3/8-19 |
33.5 |
12 |
8 |
22 |
22 |
R1/2-14 |
R1/2-14 |
39.5 |
14 |
10 |
27 |
27 |
R3/4-14 |
R3/4-14 |
45 |
16 |
15 |
32 |
32 |
R1"-11 |
R1"-11 |
53 |
18.5 |
20 |
41 |
41 |
R1"1/4-11 |
R1"1/4-11 |
58.5 |
22 |
26 |
50 |
50 |
R1"1/2-11 |
R1"1/2-11 |
62.5 |
22 |
30 |
55 |
55 |
R2"-11 |
R2"-11 |
69 |
25 |
43.5 |
70 |
70 |
