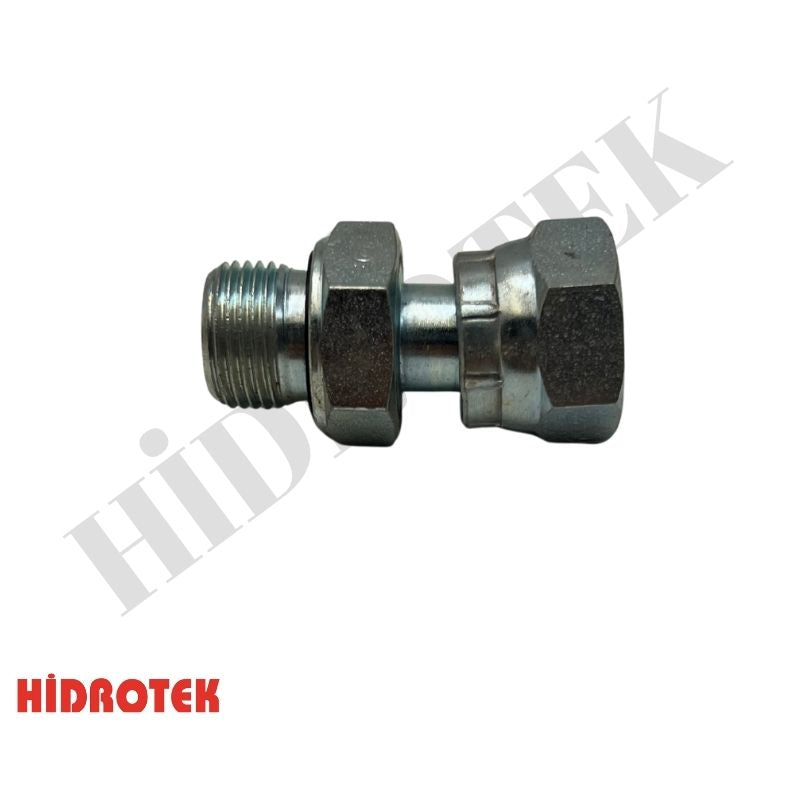

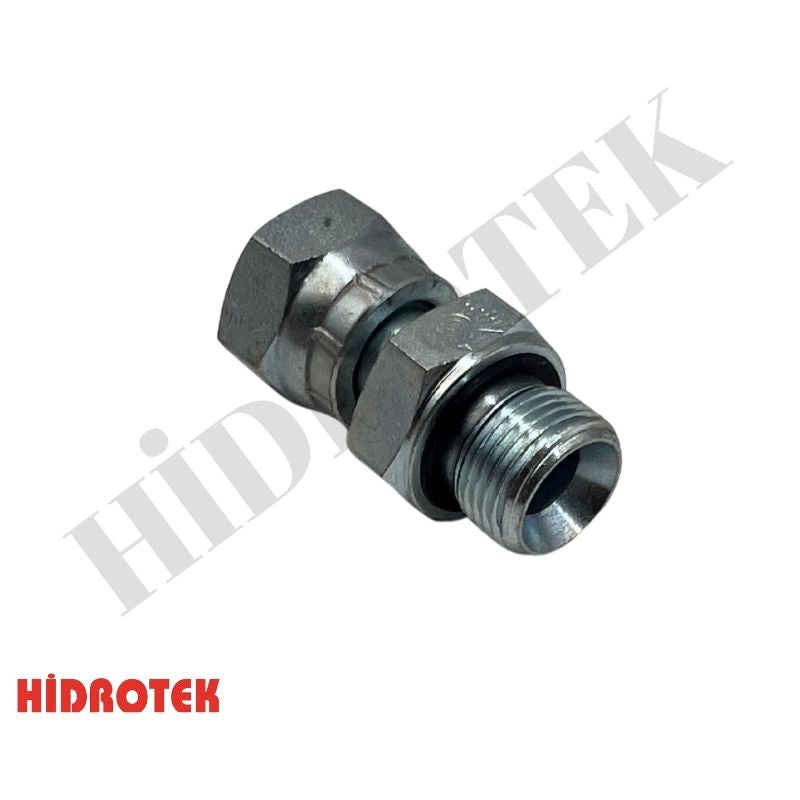

BSP - ORFS TERS PFX NİPEL |
||||||
DİŞ ÖLÇÜSÜ |
DİŞ ÖLÇÜSÜ |
B |
C |
ØD |
A1 |
A2 |
R1/4-19 |
9/16-18 |
35.5 |
12 |
5 |
19 |
19 |
R1/4-19 |
11/16-16 |
37.5 |
12 |
6 |
19 |
22 |
R3/8-19 |
11/16-16 |
38 |
12 |
6 |
22 |
22 |
R3/8-19 |
13/16-16 |
42 |
12 |
9 |
22 |
24 |
R1/2-14 |
13/16-16 |
45 |
14 |
9 |
27 |
24 |
R1/2-14 |
1"-14 |
48 |
14 |
12 |
27 |
30 |
R3/4-14 |
1"3/16-12 |
53 |
16 |
15 |
32 |
36 |
R3/4-14 |
1"7/16-12 |
55.5 |
16 |
16 |
36 |
41 |
R1"-11 |
1"7/16-12 |
58 |
18 |
19 |
41 |
41 |
R1"1/4-11 |
1"11/16-12 |
64 |
20 |
23 |
50 |
50 |
