5/16-R1/4-19 HYDRAULIC BSP 45 DEG. RECORD

45° HOSE FITTINGS WITH BSP NUT

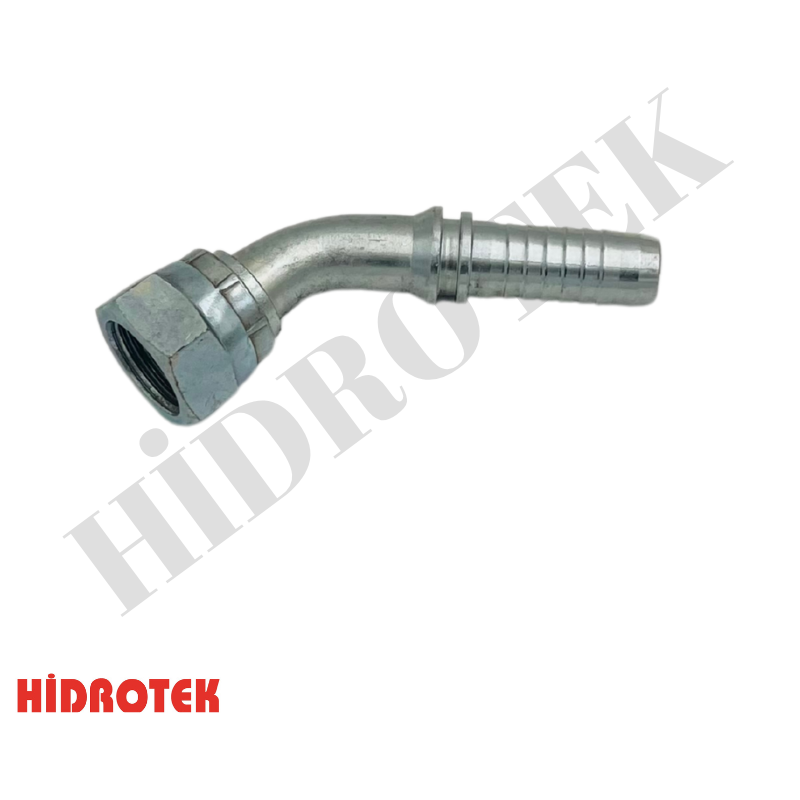

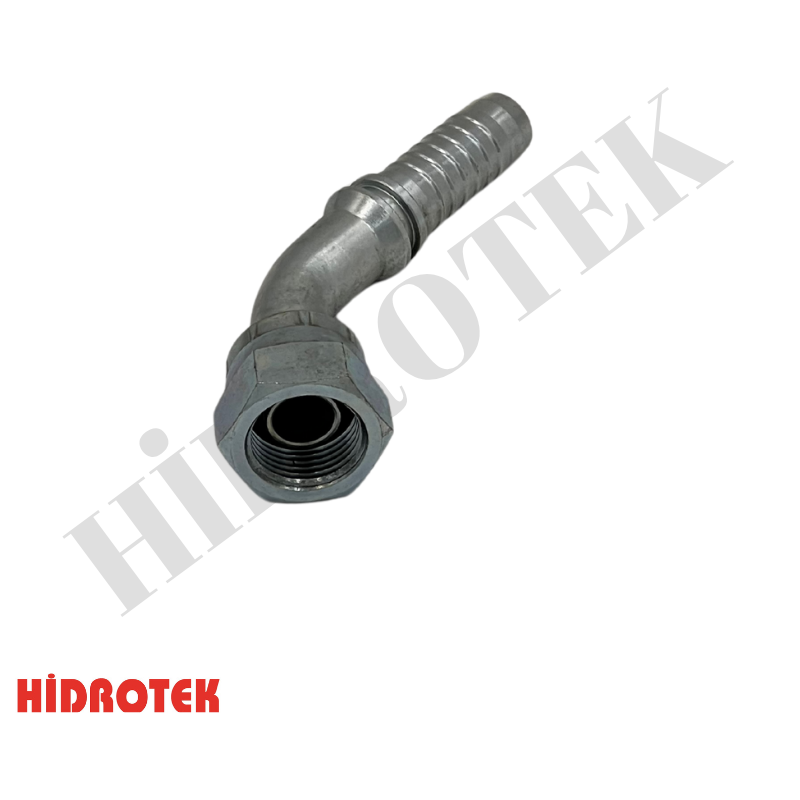

BSP FEMALE 45° ELBOW SWIVEL HOSE FITTINGS

HOSE SIZE
HOSE SIZE

NUT SIZE
NUT YOU

B.

C.

TO

BILE

AA

mm

inches

05

3/16

R1/8-28

53

32

13

3.2

14

05

3/16

R1/4-19

59

39

16

3.2

17

06

1/4

R1/8-28

60

35

14

4

14

06

1/4

R1/4-19

61

36

15

4

17

06

1/4

R3/8-19

62

37

17

4

22

06

1/4

R1/2-14

68

43

21

4

27

08

5/16

R1/4-19

67

40

18

5.5

17

08

5/16

R3/8-19

67

40

18

5.5

22

08

5/16

R1/2-14

69

42

22

5.5

27

10

3/8

R3/8-19

75

45

20

7

22

10

3/8

R1/2-14

79

49

24

7

27

12

1/2

R3/8-19

85

52

24

9

22

12

1/2

R1/2-14

83

59

25

9

27

16

5/8

R5/8-14

98

58

28

12

30

16

5/8

R3/4-14

103

63

30

12

32

19

3/4

R3/4-14

108

64

32

14

32

25

one"

R1"-11

140

85

33

19

41

32

1"1/4

R1"1/4-11

165

105

44

25

50

38

1"1/2

R1"1/2-11

185

115

47

29

55

50

2"

R2"

150

90

35

41

70

64

2"1/2

R2"1/2

190

120

50

54

90

76

3"

R3"

210

140

50

68

96
