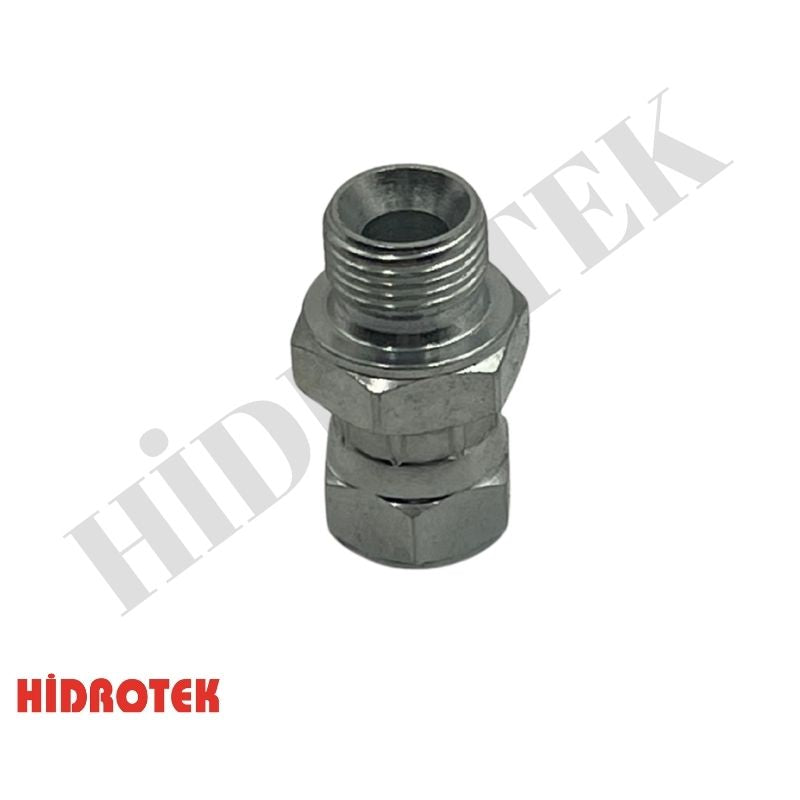

1/4-1/2 HİDROLİK BSP-UNF TERS NİPEL

BSP - UNF TERS NİPEL
BSP METAL SEALING - UNF FEMALE SWIWEL

DİŞ ÖLÇÜSÜ
THREAD SIZE
T1

DİŞ ÖLÇÜSÜ
THREAD SIZE
T2

B

C

ØD

A1

A2

R1/8-28

7/16-20

22.5

9

4

14

16

R1/4-19

7/16-20

27

11

4.5

19

16

R1/4-19

1/2-20

28.5

11

5.5

19

17

R1/4-19

9/16-18

29

11

6

19

19

R3/8-19

9/16-18

30.5

12

6

22

19

R3/8-19

5/8-18

30.5

12

7

22

21

R3/8-19

3/4-16

33.5

12

9

22

24

R1/2-14

9/16-18

34

14

6

27

19

R1/2-14

5/8-18

34

14

7

27

21

R1/2-14

3/4-16

37

14

9

27

24

R1/2-14

7/8-14

37.5

14

12

27

27

R3/4-14

7/8-14

40.5

16

12

32

27

R3/4-14

1"1/16-12

42.5

16

15

32

32

R1"-11

1"1/16-12

46.5

18.5

15

41

32

R1"-11

1"5/16-12

49

'18.5

20

41

41
